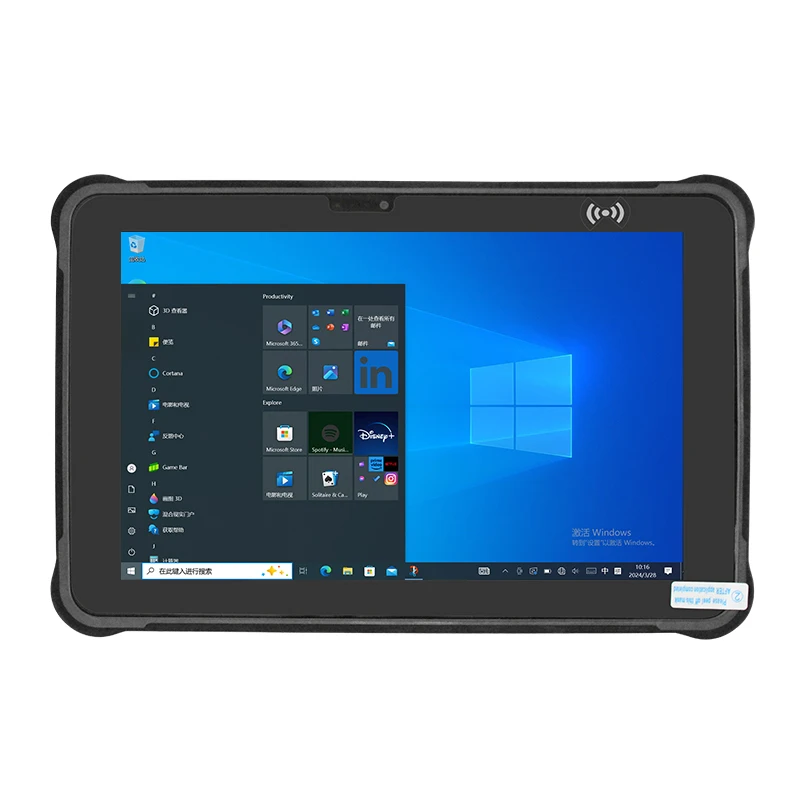

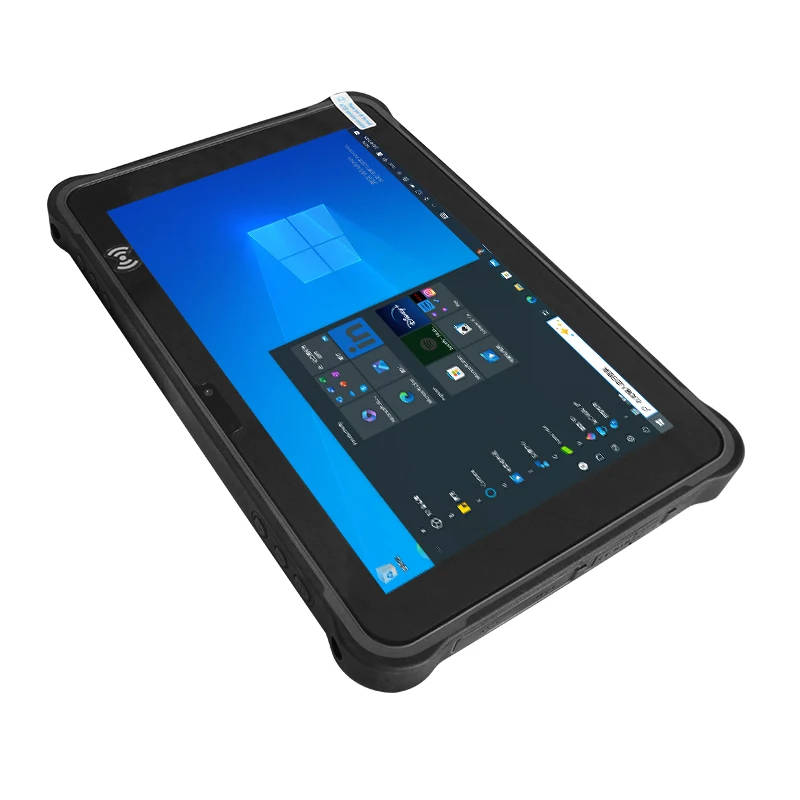

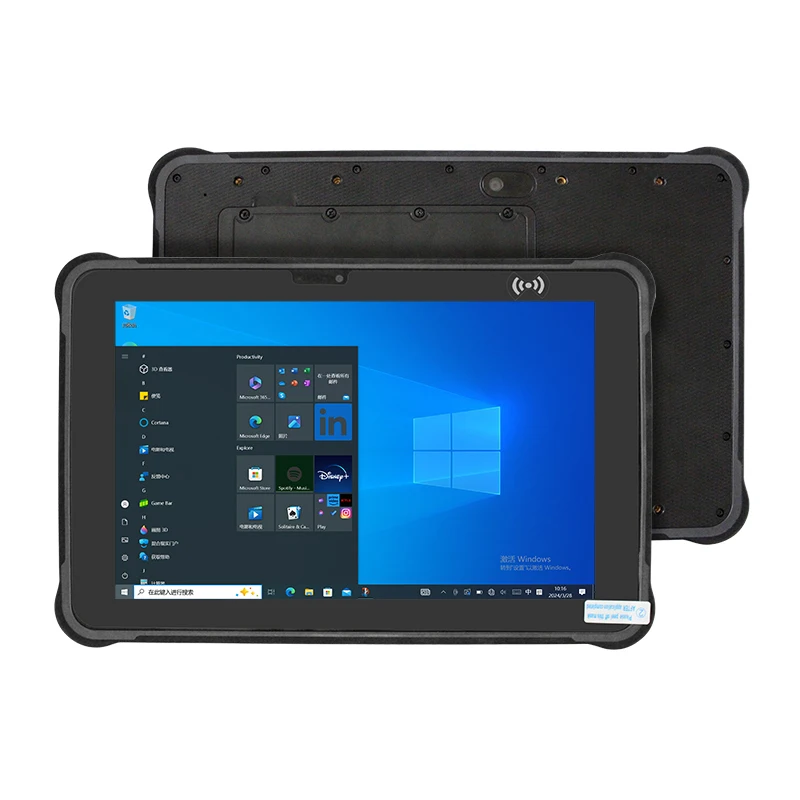

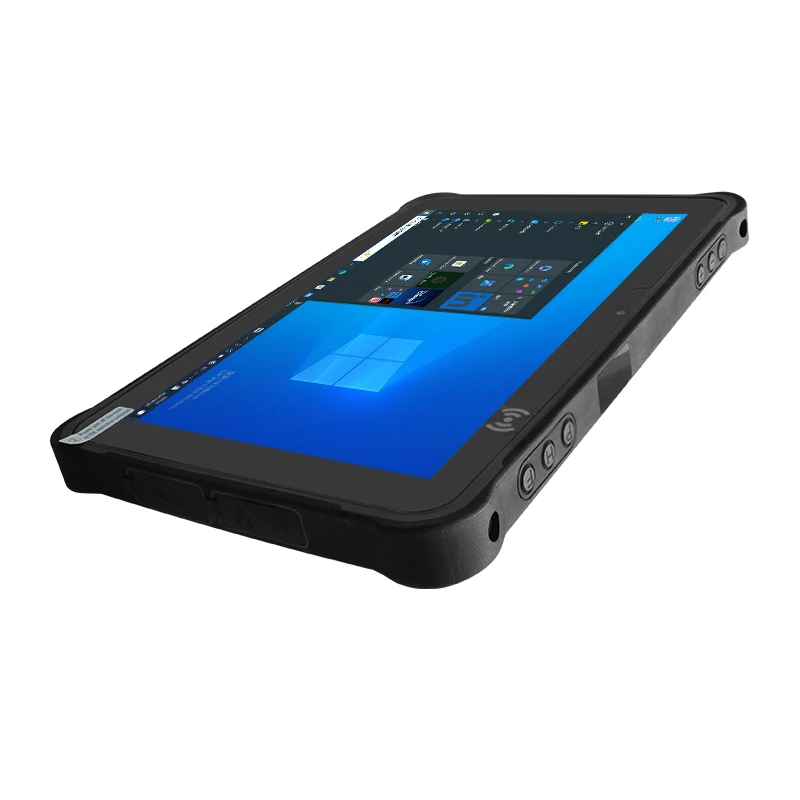

Rugged Tablet 10.1 Inch H1920 V1200 450 Nits RAM 4GB ROM 64GB Support Hot Swap Battery ,WiFi Version With NFC/USB/GPS/BT/RJ45

Rugged Tablet 10.1 inch H1920 V1200 450 nits RAM 4GB ROM 64GB Support Hot swap battery WiFi version with NFC/USB/GPS/BT/RJ45/RS232 port

• Features:

1. windows 10 pro,Processor Z8350

2. 10.1 Inch 1920*1200 solution, max 500 nits and AG protector sunshine readable LCD

3. RAM/ROM 4+64GB

4. Battery: 2100mAh (built-in) 8400mAh (support hot swap)

5. WIFI/GPS/BT/NEC (NO 4g lte)

6. 2M/5M camera

7. POE RJ45, RS232/TTL, USB2.0*1，USB3.0*1, DC,HDMI, Microphone interface

8. front NFC optional, support mifare one

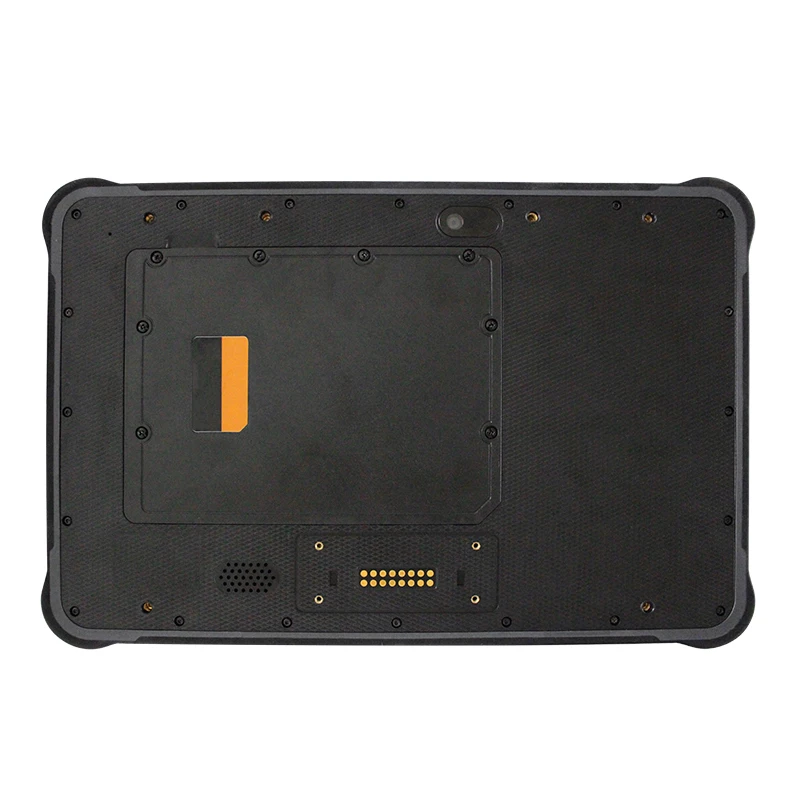

9. bottom and back pogo pin, provide USB and TTL extend.

• Optional:

1.2D barcode( honeywell N4680)

2.LF 125KHz ,UHF 3-4 meter（EU/US）frequency band.

3.finger print

4.High precision GPS optional, (precision is 0.25-1 meter)

• Accessories:

Extra battery (8400mAh)*1, charging base*1.

Car mount(optional)

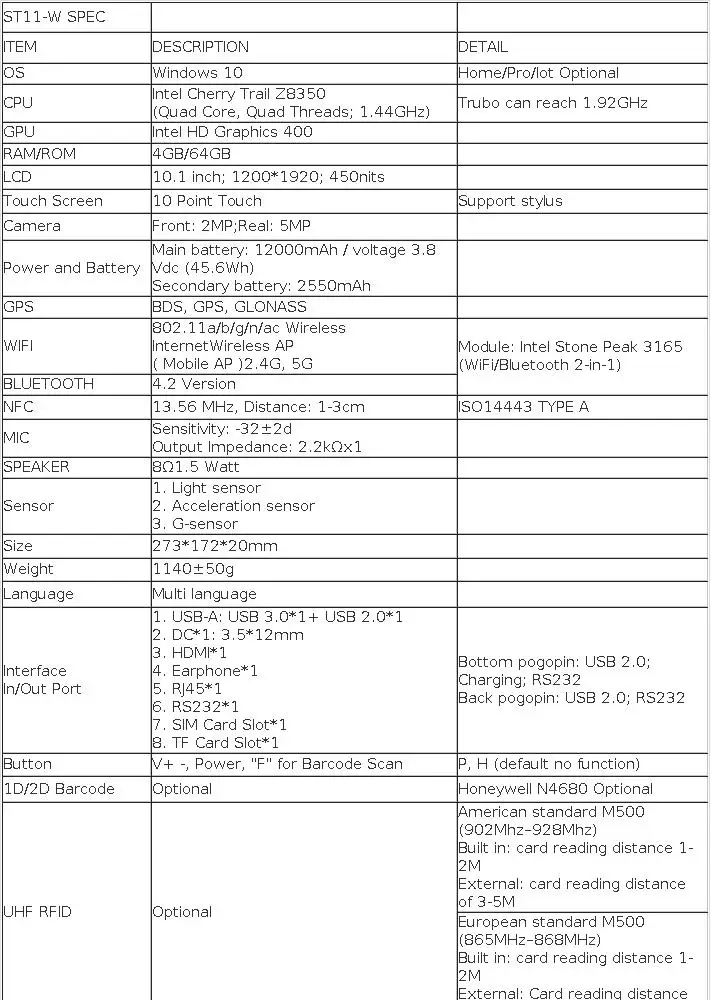

ST11-W SPEC
ITEM	DESCRIPTION	DETAIL
OS	Windows 10	Home/Pro/Iot Optional
CPU	Intel Cherry Trail Z8350 (Quad Core, Quad Threads; 1.44GHz)	Trubo can reach 1.92GHz
GPU	Intel HD Graphics 400
RAM/ROM	4GB/64GB
LCD	10.1 inch; 1200*1920; 450nits
Touch Screen	10 Point Touch	Support stylus
Camera	Front: 2MP;Real: 5MP
Power and Battery	Main battery: 12000mAh / voltage 3.8Vdc (45.6Wh) Secondary battery: 2550mAh
GPS	BDS, GPS, GLONASS
WIFI	802.11a/b/g/n/ac Wireless InternetWireless AP ( Mobile AP )2.4G, 5G	Module: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
BLUETOOTH	4.2 Version
NFC	13.56 MHz, Distance: 1-3cm	ISO14443 TYPE A
MIC	Sensitivity: -32±2d Output Impedance: 2.2kΩx1
SPEAKER	8Ω1.5 Watt
Sensor	1. Light sensor 2. Acceleration sensor 3. G-sensor
Size	273*172*20mm
Weight	1140±50g
Language	Multi language
Interface In/Out Port	1. USB-A: USB 3.0*1+ USB 2.0*1 2. DC*1: 3.5*12mm 3. HDMI*1 4. Earphone*1 5. RJ45*1 6. RS232*1 7. SIM Card Slot*1 8. TF Card Slot*1	Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232
Button	V+ -, Power, "F" for Barcode Scan	P, H (default no function)
1D/2D Barcode	Optional	Honeywell N4680 Optional
UHF RFID	Optional	American standard M500 (902Mhz–928Mhz) Built in: card reading distance 1-2M External: card reading distance of 3-5M
		European standard M500 (865MHz–868MHz) Built in: card reading distance 1-2M External: Card reading distance of 3-5M

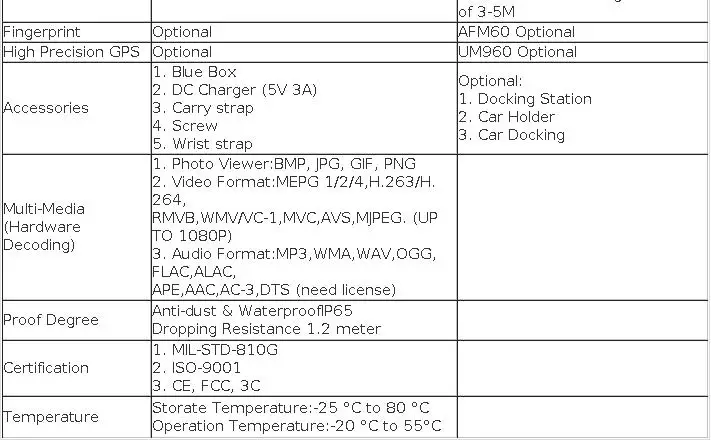

Fingerprint	Optional	AFM60 Optional
High Precision GPS	Optional	UM960 Optional

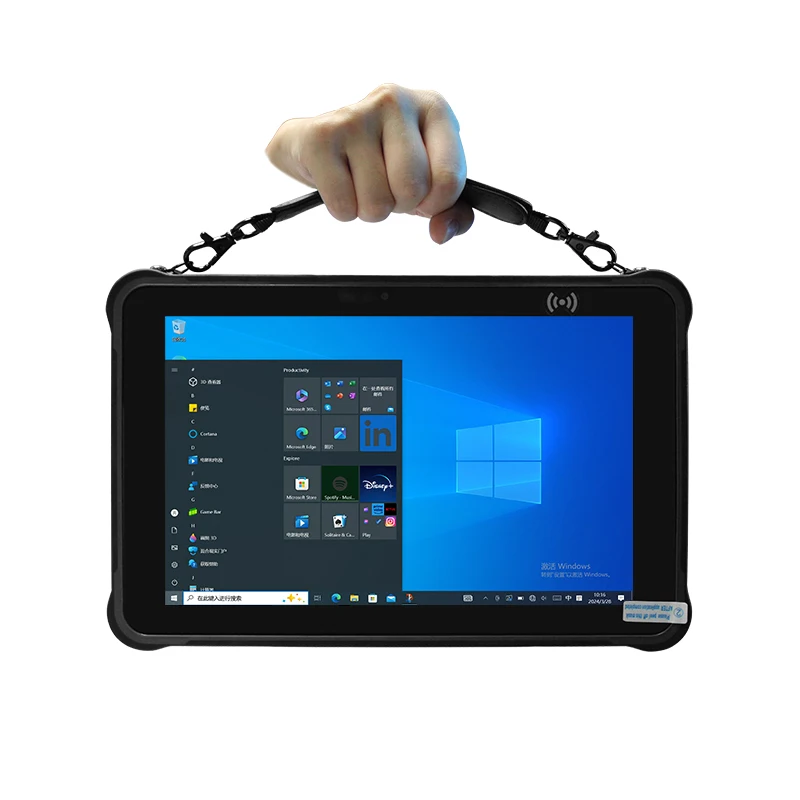

Accessories	1. Blue Box 2. DC Charger (5V 3A) 3. Carry strap 4. Screw 5. Wrist strap	Optional: 1. Docking Station 2. Car Holder 3. Car Docking
Multi-Media (Hardware Decoding)	1. Photo Viewer:BMP, JPG, GIF, PNG 2. Video Format:MEPG 1/2/4,H.263/H.264, RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) 3. Audio Format:MP3,WMA,WAV,OGG,FLAC,ALAC, APE,AAC,AC-3,DTS (need license)
Proof Degree	Anti-dust & WaterproofIP65 Dropping Resistance 1.2 meter
Certification	1. MIL-STD-810G 2. ISO-9001 3. CE, FCC, 3C
Temperature	Storate Temperature:-25 °C to 80 °C Operation Temperature:-20 °C to 55°C
